If you own a 2017 Ford F150, you might be wondering what type of oil you should use, how much oil your engine can hold, and which oil filter you need.
Well, wonder no more! In this article, we’ll cover everything you need to know about the oil type, capacity, and filters for all engines of the 2017 Ford F150.
The 2017 Ford F150 comes with four different engine options, each with its own oil type and capacity. Let’s take a closer look at each one.
| Engine | Oil Capacity, incl. Filter | Oil Type | Filter |
|---|---|---|---|
| 2.7L EcoBoost V6 | 6.0 qt (5.7L) | SAE 5W-30 | FL-2062 |
| 3.5L V6 | 6.3 qt (6L) | SAE 5W-20 | FL-500-S |
| 3.5L EcoBoost V6 | 6.0 qt (5.7L) | SAE 5W-30 | FL-500-S |
| 5.0L V8 | 7.7 qt (7.3L) | SAE 5W-20 | FL-500-S |
It’s important to note that these capacities include the filter as well. Be sure not to overfill your engine with too much oil, as this can cause damage.
Engine Oil Types
Motorcraft SAE 5W-20 Motor Oil
Amazon Affiliate Link
Motorcraft SAE 5W-30 Motor Oil
Amazon Affiliate Link
Motorcraft FL-500-S Original Oil Filter
Amazon Affiliate Link

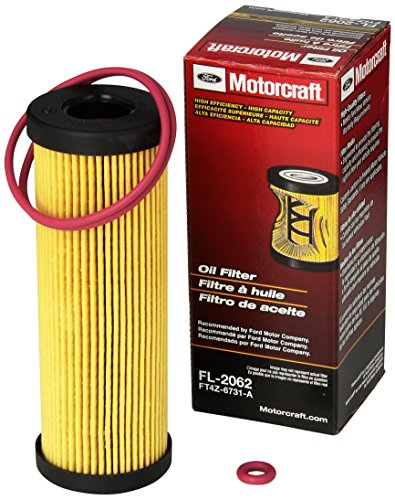

Motorcraft FL-2062 Oil Filter
Amazon Affiliate Link
The need for this guide, specifically for the 2017 F150 engine oil, is because this truck is available in many different configurations, trims, and engine options. This creates confusion about the engine oil capacity, type, and filter.
Read on for more information and engine oil specifications by each 2017 F150 engine type. After reading this guide, you’ll get everything you need to change your 2017 F150 engine oil and filter.
All this information is researched and put together from the official Ford resources, including the 2017 Ford F-150 Owner’s Manual and Ford.com.
Table of Contents
2017 F150 Engine Oil Capacities, Types, and Filters
As the above table shows, the 2017 F150 comes with 4 engines. Below I’ve discussed all engine types, engine oil capacities, recommended engine oil types based on climate conditions, and engine oil filters, and answered several important questions.
2.7L EcoBoost V6 Engine
2017 F150 2.7L EcoBoost V6 engine can take 6.0 quarts (5.7L) of Motorcraft SAE 5W-30 Synthetic Blend Motor Oil with Motorcraft FL-2062 engine oil filter.
Motorcraft SAE 5W-30 Motor Oil
Amazon Affiliate Link
Motorcraft FL-2062 Oil Filter
Amazon Affiliate Link
Ford recommends using engine oils and filters manufactured by Motorcraft, the official vehicle part brand of Ford.
You can also use other brands for your 2017 Ford F150, but you’ve to ensure that they meet the industry performance specifications and recommended viscosity grade.
3.5L Ti-VCT V6 Engine
2017 F150 3.5L Ti-VCT V6 engine can take 6.0 quarts (5.7L) of Motorcraft SAE 5W-20 Synthetic Blend Motor Oil with Motorcraft FL-500-S engine oil filter.
Motorcraft FL-500-S Original Oil Filter
Amazon Affiliate Link
Motorcraft SAE 5W-20 Motor Oil
Amazon Affiliate Link
Ford recommends using engine oils and filters manufactured by Motorcraft, the official vehicle part brand of Ford.
You can also use other brands for your 2017 Ford F150, but you’ve to ensure that they meet the industry performance specifications and recommended viscosity grade.
3.5L EcoBoost V6 Engine
2017 F150 3.5L EcoBoost V6 engine can take 6.3 quarts (6 L) of Motorcraft SAE 5W-30 Synthetic Blend Motor Oil with Motorcraft FL-500-S engine oil filter.
Motorcraft SAE 5W-30 Motor Oil
Amazon Affiliate Link
Motorcraft FL-500-S Original Oil Filter
Amazon Affiliate Link
Ford recommends using engine oils and filters manufactured by Motorcraft, the official vehicle part brand of Ford. Below are the items that I’ve found on Amazon.
You can also use other brands for your 2017 Ford F150, but you’ve to ensure that they meet the industry performance specifications and recommended viscosity grade.
5.0L Ti-VCT V8 Engine
2017 F150 5.0L Ti-VCT V8 engine can take 7.7 quarts (7.3 L) of Motorcraft SAE 5W-20 Synthetic Blend Motor Oil with Motorcraft FL-500-S engine oil filter.
Motorcraft FL-500-S Original Oil Filter
Amazon Affiliate Link
Motorcraft SAE 5W-20 Motor Oil
Amazon Affiliate Link
Ford recommends using engine oils and filters manufactured by Motorcraft, the official vehicle part brand of Ford. Below are the items that I’ve found on Amazon.
You can also use other brands for your 2017 Ford F150, but you’ve to ensure that they meet the industry performance specifications and recommended viscosity grade.
Ford says that you must not use any SUPPLEMENTAL ENGINE OILS because they don’t meet your truck requirements and may lead to engine damage and void your 2017 F150 vehicle warranty.
Other synthetic engine oils recommended by Ford must meet the API SP requirements, and they are required to be API-certified by the American Petroleum Institute.
Engine oils with this certification mark will conform to the engine, emission system, and fuel economy performance standards of the 2017 F150 as set by the Lubricant Standardization and Approval Committee (ILSAC).
2017 F150 Extremely Cold Climate Engine Oil Types and Filters
If your area has extremely cold weather conditions, -22.0°F (-30°C) or below, you’ve to use low viscosity engine oil (SAE 0W-30 and SAE 0W-20) for your 2017 F150 as shown in the table.
This oil type will improve engine cold start performance and prevent many other problems.
| Engine | Oil Type (for Cold Climate) | Filter |
|---|---|---|
| 2.7L EcoBoost V6 | SAE 0W-30 | FL-2062 |
| 3.5L Ti-VCT V6 | SAE 0W-20 | FL-500-S |
| 3.5L EcoBoost V6 | SAE 0W-30 | FL-500-S |
| 5.0L Ti-VCT V8 | SAE 0W-20 | FL-500-S |
Motorcraft SAE 0W-20 Motor Oil
Amazon Affiliate Link
Valvoline Full Synthetic SAE 0W-30 Oil
Amazon Affiliate Link
Motorcraft FL-2062 Oil Filter
Amazon Affiliate Link
Motorcraft FL-500-S Original Oil Filter
Amazon Affiliate Link
SAE 0W-30 engine oil is specifically made for cold weather conditions and has low viscosity or thickness than 5W-30.
This is because the shallow temperatures make 5W-30 thicker and hard to flow between the engine parts during startup.
2017 Ford F150 Oil Change Interval: Ford recommendation
In short, the 2017 F150 oil change interval recommended by Ford is every year or 10,000 miles (16,000 km). You should never exceed this limit between oil change intervals. This applies to all 2017 F150 engine options.
It may change depending on your truck usage conditions. The information that I’ve found from the official Ford resources about vehicle usage is as follows:
Oil Change Interval for Normal Use
Under normal usage conditions, the 2017 Ford F150 Oil change interval lies between every 7,500 – 10,000 miles (12,000 – 16,000 km).
Normal use may include highway driving with passengers, no or moderate load/trailer towing, flat to moderately hilly road driving, and no extended idling.
Oil Change Interval for Severe Use
Under severe usage conditions, the 2017 Ford F150 Oil change interval lies between every 5,000 – 7,500 miles (8,000 – 12,000 km).
Severe use may include moderate to heavy load or towing, mountainous or off-road driving, extended idling, and extended hot or cold operations.
Oil Change Interval for Extreme Use
Under severe usage conditions, the 2017 Ford F150 Oil change interval lies between every 3,000 – 5,500 miles (5,000 – 8,000 km).
Extreme use may include maximum load or towing and extreme hot or cold operation.
2017 Ford F-150 Oil & Filter Change Video
FAQs
What kind of oil does a 2017 Ford F150 take?
The recommended oil type for a 2017 Ford F150 depends on the engine. The 2.7L EcoBoost V6 and 3.5L EcoBoost V6 engines use SAE 5W-30 oil, while the 3.5L Ti-VCTV6 and 5.0L Ti-VCTV8 engines use SAE 5W-20 oil.
How much oil does a 2017 Ford F-150 take?
The amount of oil needed for a 2017 Ford F150 also varies based on the engine. The 2.7L EcoBoost V6 and 3.5L EcoBoost V6 engines require 6.0 qt (5.7L) of oil, while the 3.5L Ti-VCTV6 engine requires 6.3 qt (6L) and the 5.0L Ti-VCTV8 engine requires 7.7 qt (7.3L) of oil.
What kind of oil does a 2017 Ford F-150 3.5 EcoBoost take?
For a 2017 Ford F-150 with a 3.5 EcoBoost V6 engine, the recommended oil type is SAE 5W-30, and the oil capacity, including the filter, is 6.0 qt (5.7L).
How much oil does a 2017 f150 3.5 EcoBoost take?
Finally, a 2017 Ford F150 with a 3.5 EcoBoost V6 engine requires 6.0 qt (5.7L) of oil.
Conclusion
In conclusion, it is essential to use the right oil type and amount when performing oil changes on a 2017 Ford F150. The oil capacity, oil type, and filter for each engine type are provided in the table above.
By taking care of the engine and using the right oil type and capacity, you can ensure that your 2017 Ford F150 runs smoothly and efficiently for years to come.
